Global OEM Manufacturer & Exporter of Bone Plates

HCM Orthocare is a recognized leader in precision engineering, manufacturing, and global exporting of medical-grade Orthopedic Bone Plates. Based in Ahmedabad, India, our manufacturing facility produces an expansive range of rigid trauma fixation systems designed to reconstruct fractured bone fragments, maintain anatomical alignment, and facilitate biological healing.

Operating strictly under ISO 13485:2016 quality management standards, our trauma and spinal bone plates are constructed using premium biocompatible materials, including Titanium Alloy (Ti6Al4V ELI per ASTM F136) and Stainless Steel 316L (per ASTM F138). Our implants undergo rigorous testing to perform reliably under physiological mechanical stresses while minimizing complications such as stress shielding or localized inflammation.

✓
ISO 13485 Certified
✓
Titanium Ti6Al4V & SS 316L
✓
CE Compliance
✓
Exported to 50+ Countries

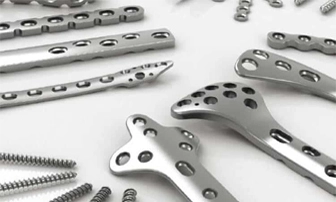

Orthopedic Bone Plates Supplier HCM Orthocare
🏆 Clinical Quality
Precision Trauma Fixation

Comprehensive Bone Plate Product Range

HCM Orthocare supplies standard and specialized orthopedic fixation plates engineered to meet diverse surgical techniques, anatomical contouring requirements, and fracture classifications.

Locking Compression Plates (LCP)

Combines dynamic compression and angular stable locking screw capabilities in a single combi-hole construct. Ideal for osteoporotic bone, complex periarticular fractures, and non-unions.

Trauma Small & Large Fragment Plates

Designed for rigid fixation of long bone diaphyseal fractures including the femur, tibia, humerus, radius, and ulna. Provides reliable mechanical stabilization under dynamic physiological loads.

Cervical Spine Plates

Low-profile anterior cervical fixation systems providing rigid stabilization during spinal fusion procedures, featuring built-in locking mechanisms to prevent screw back-out.

Reconstruction & Tubular Plates

Flexible contouring options ideal for pelvic trauma, clavicle fractures, and distal fibula fractures, allowing precise intraoperative shaping with minimal structural fatigue.

Anatomical Pre-Contoured Plates

Pre-shaped to match specific anatomical geometries (such as distal radius, proximal humerus, or distal tibia), reducing intraoperative bending time and soft tissue interference.

Mini & Micro Bone Plates

Specially developed for maxillofacial, hand, and foot reconstruction, ensuring low-profile stabilization with high torque retention for fine anatomical structures.

Trauma Bone Plate Features

Key Engineering & Clinical Features

Our trauma bone plates incorporate advanced biomechanical design choices to support surgical efficiency and optimal patient recovery:

  • Anatomical Low-Profile Design: Tapered edges and low profile reduce soft tissue irritation and tendon impingement post-surgery.
  • Combi-Hole Technology: Allows surgeons to choose between standard cortical dynamic compression or angle-stable locking fixation in the same hole.
  • Enhanced osseo-integration: Surface treatment options, including Type II anodization for titanium plates, improve wear resistance and fatigue strength.
  • Corrosion Resistance & Biocompatibility: Rigorous passivated finish prevents ion release and protects long-term in-vivo structural integrity.

Technical Specifications — Bone Plate Systems

Comprehensive technical parameters for international procurement, hospital purchase committees, and medical device distributors.

Parameter Specification Standard
Material Grade Titanium Alloy Ti6Al4V ELI (ASTM F136) / Stainless Steel 316L (ASTM F138)
Quality Management ISO 13485:2016 Certified / CE Marking Compliant
System Types Locking Compression Plates (LCP), Standard DCP, Reconstruction, Cervical, Mini-Fragment
Screw Compatibility 2.0mm, 2.7mm, 3.5mm, 4.5mm, and 5.0mm Cortical, Cancellous, and Locking Screws
Hole Configurations 2 Holes to 18 Holes (custom lengths available on demand)
Surface Treatment Electro-polished, Passivated, Type II Anodized (Color coded for Titanium)
Sterilization Compatibility Gamma Irradiation, Ethylene Oxide (EO), and Autoclave compatible
Packaging Protective double-layer sterile pouch or non-sterile bulk export packaging

Frequently Asked Questions

Answers to key questions from international medical distributors and procurement officials.

What materials are used in HCM Orthocare bone plates? +
HCM Orthocare bone plates are manufactured from certified biocompatible Titanium Alloy (Ti6Al4V ELI conforming to ASTM F136) and Surgical Stainless Steel 316L (conforming to ASTM F138). Both options offer exceptional mechanical resistance and biocompatibility.
Are HCM Orthocare bone plates CE and ISO certified? +
Yes. All our orthopedic implants are manufactured in compliance with ISO 13485:2016 quality management standards and carry complete regulatory documentation, CE certification, and technical files required for global distribution.
Can you provide OEM branding and custom plate dimensions? +
Yes, we offer full OEM and private label manufacturing services for international distributors. We can manufacture customized bone plates based on your technical drawings, CAD files, or custom dimensions.
What is the minimum lead time for international export orders? +
Standard stock items can be dispatched promptly upon order confirmation. Custom OEM production runs typically require 2 to 4 weeks depending on the order volume and technical specifications.
